Create gaze heatmap of eye coordinates

Source: R/plot.eyeris.R
plot_gaze_heatmap.Rd

Creates a heatmap showing the distribution of eye_x and eye_y coordinates across the entire screen area. The heatmap shows where the participant looked most frequently during the recording period.

Usage

plot_gaze_heatmap(
  eyeris,
  block = 1,
  screen_width = NULL,
  screen_height = NULL,
  n_bins = 50,
  col_palette = "viridis",
  main = "Gaze Heatmap",
  xlab = "Screen X (pixels)",
  ylab = "Screen Y (pixels)",
  sample_rate = NULL,
  eye_suffix = NULL
)

Arguments

eyeris

An object of class eyeris derived from load_asc()

block

Block number to plot (default: 1)

screen_width

Screen width in pixels from eyeris$info$screen.x

screen_height

Screen height in pixels from eyeris$info$screen.y

n_bins

Number of bins for the heatmap grid (default: 50)

col_palette

Color palette for the heatmap (default: "viridis")

main

Title for the plot (default: "Fixation Heatmap")

xlab

X-axis label (default: "Screen X (pixels)")

ylab

Y-axis label (default: "Screen Y (pixels)")

sample_rate

Sample rate in Hz (optional)

eye_suffix

Eye suffix for binocular data (default: NULL)

Value

No return value; creates a heatmap plot

Examples

demo_data <- eyelink_asc_demo_dataset()
eyeris_preproc <- glassbox(demo_data)
#> ✔ [2025-12-05 19:59:51] [OKAY] Running eyeris::load_asc()
#> ℹ [2025-12-05 19:59:51] [INFO] Processing block: block_1
#> ✔ [2025-12-05 19:59:51] [OKAY] Running eyeris::deblink() for block_1
#> ✔ [2025-12-05 19:59:51] [OKAY] Running eyeris::detransient() for block_1
#> ✔ [2025-12-05 19:59:51] [OKAY] Running eyeris::interpolate() for block_1

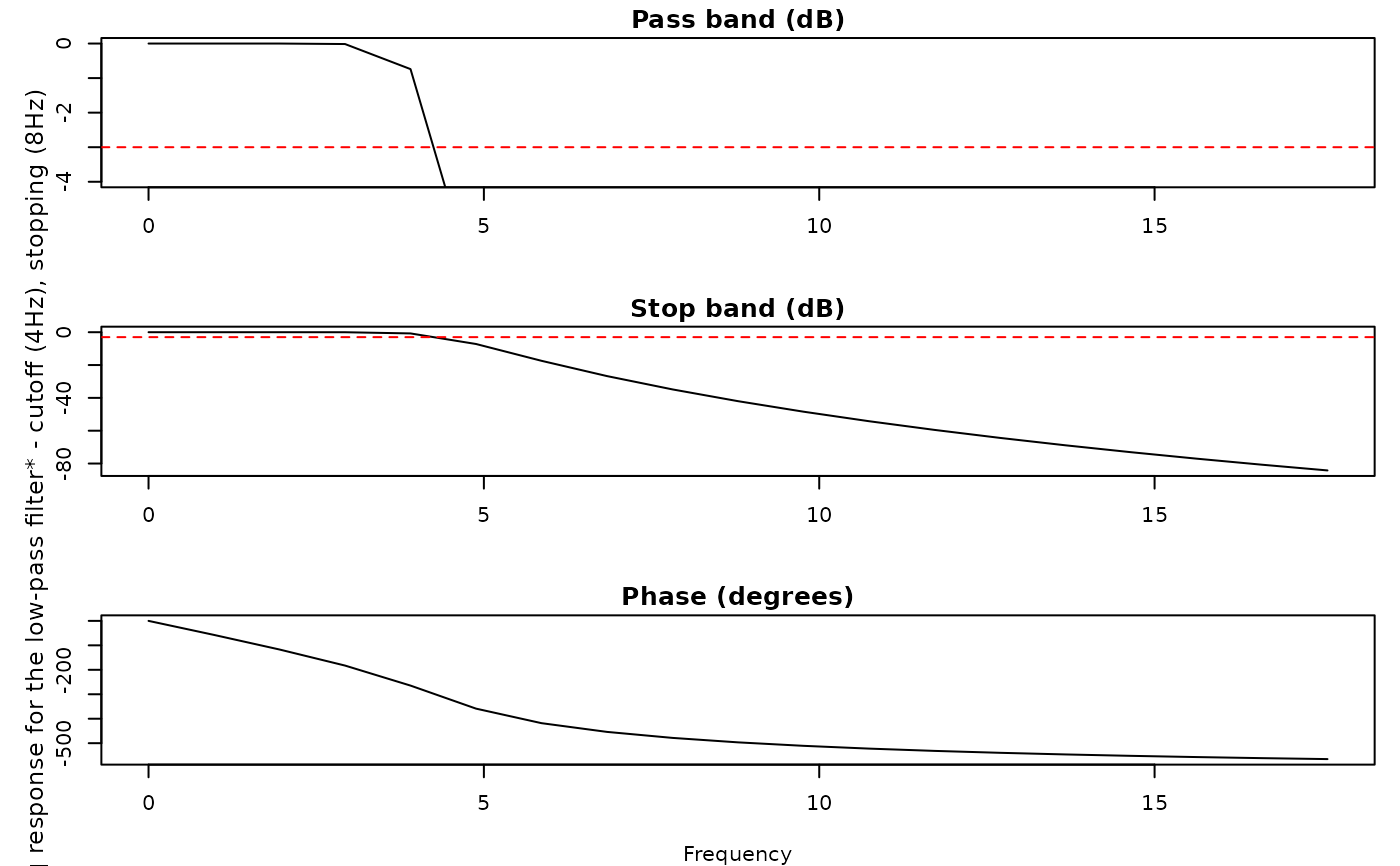

#> ✔ [2025-12-05 19:59:51] [OKAY] Running eyeris::lpfilt() for block_1

#> ! [2025-12-05 19:59:51] [WARN] Skipping eyeris::downsample() for block_1
#> ! [2025-12-05 19:59:51] [WARN] Skipping eyeris::bin() for block_1
#> ! [2025-12-05 19:59:51] [WARN] Skipping eyeris::detrend() for block_1
#> ✔ [2025-12-05 19:59:51] [OKAY] Running eyeris::zscore() for block_1
#> ℹ [2025-12-05 19:59:51] [INFO] Block processing summary:
#> ℹ [2025-12-05 19:59:51] [INFO] block_1: OK (steps: 6, latest:
#> pupil_raw_deblink_detransient_interpolate_lpfilt_z)
#> ✔ [2025-12-05 19:59:51] [OKAY] Running eyeris::summarize_confounds()

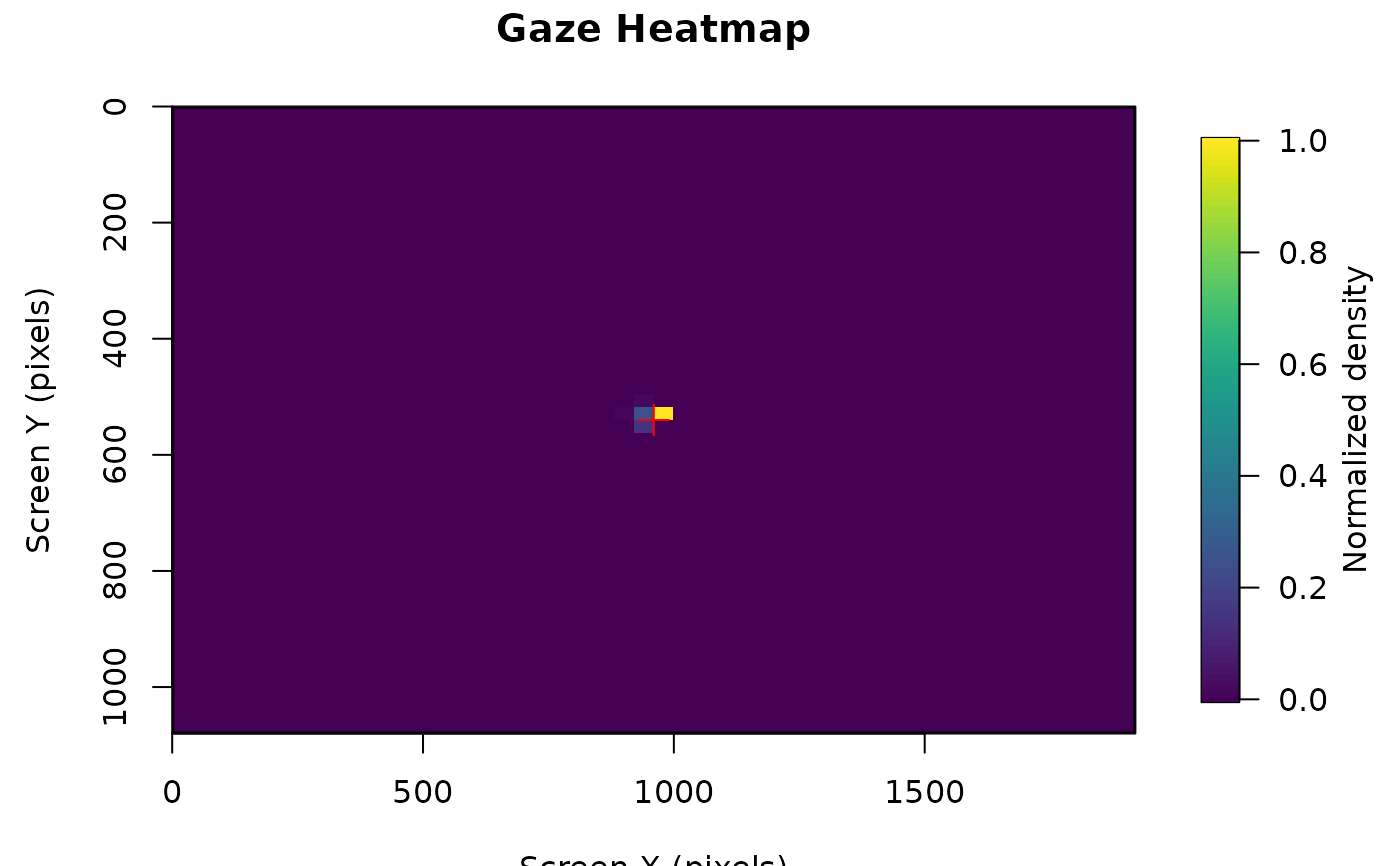

plot_gaze_heatmap(eyeris = eyeris_preproc, block = 1)
