Interpolate missing pupil samples

Linear interpolation of time series data. The intended use of this method is for filling in missing pupil samples (NAs) in the time series. This method uses "na.approx()" function from the zoo package, which implements linear interpolation using the "approx()" function from the stats package. Currently, NAs at the beginning and the end of the data are replaced with values on either end, respectively, using the "rule = 2" argument in the approx() function.

Usage

interpolate(eyeris, max_gap_ms = 250, verbose = TRUE, call_info = NULL)

Arguments

eyeris: An object of class eyeris derived from load_asc()
max_gap_ms: The maximum duration (in milliseconds) of a gap of missing (NA) pupil samples that will be interpolated. Gaps longer than this threshold are left as NA (not interpolated). Must be greater than 0; defaults to 250 ms, the value recommended by Kret & Sjak-Shie (2018). Set to Inf (or NULL) to interpolate across all gaps regardless of duration. The threshold is converted to a whole number of samples (rounded down) using each recording's sampling rate. To skip interpolation entirely, set interpolate = FALSE in glassbox() instead
verbose: A flag to indicate whether to print detailed logging messages. Defaults to TRUE. Set to FALSE to suppress messages about the current processing step and run silently
call_info: A list of call information and parameters. If not provided, it will be generated from the function call

Value

An eyeris object with a new column in timeseries: pupil_raw_{...}_interpolate

Details

By default, only gaps shorter than or equal to max_gap_ms milliseconds are interpolated. Any gap longer than this threshold is left as NA rather than being interpolated over. This follows the recommendation of Kret & Sjak-Shie (2018) to avoid interpolating across long stretches of missing data, where linear interpolation is unlikely to reflect the true underlying pupil signal. The default of 250 ms matches the value used in that paper.

Set max_gap_ms = Inf (or NULL) to disable the limit and interpolate across all gaps, restoring the behavior of eyeris versions <= 3.2.0.

Downstream glassbox() steps that cannot operate on missing data (low-pass filtering, downsampling, and binning) automatically work around these retained gaps – filtering/resampling over a temporarily filled copy and then restoring the gaps as NA – so the gaps are preserved through to the final preprocessed output. Because of this temporary fill, the filtering steps (lpfilt() and the anti-aliasing filter in downsample()) can slightly bias the valid samples immediately adjacent to a long retained gap toward the interpolated values. These steps therefore emit a warning when they operate over such gaps, so you can choose to disable them (e.g. lpfilt = FALSE and/or downsample = FALSE in glassbox()) if this bias is a concern for your analysis.

Note: Prior to eyeris version 3.3.0, all gaps were interpolated regardless of duration. Enforcing max_gap_ms is a change in default behavior and may affect downstream results.

This function is automatically called by glassbox() by default. Use glassbox(interpolate = FALSE) to disable this step as needed.

Users should prefer using glassbox() rather than invoking this function directly unless they have a specific reason to customize the pipeline manually.

Note

This function is part of the glassbox() preprocessing pipeline and is not intended for direct use in most cases. Use glassbox(interpolate = TRUE), or provide parameters via glassbox(interpolate = list(max_gap_ms = ...)).

Advanced users may call it directly if needed.

References

Kret, M. E., & Sjak-Shie, E. E. (2018). Preprocessing pupil size data: Guidelines and code. Behavior Research Methods, 51(3), 1336-1342. doi:10.3758/s13428-018-1075-y

Examples

demo_data <- eyelink_asc_demo_dataset()

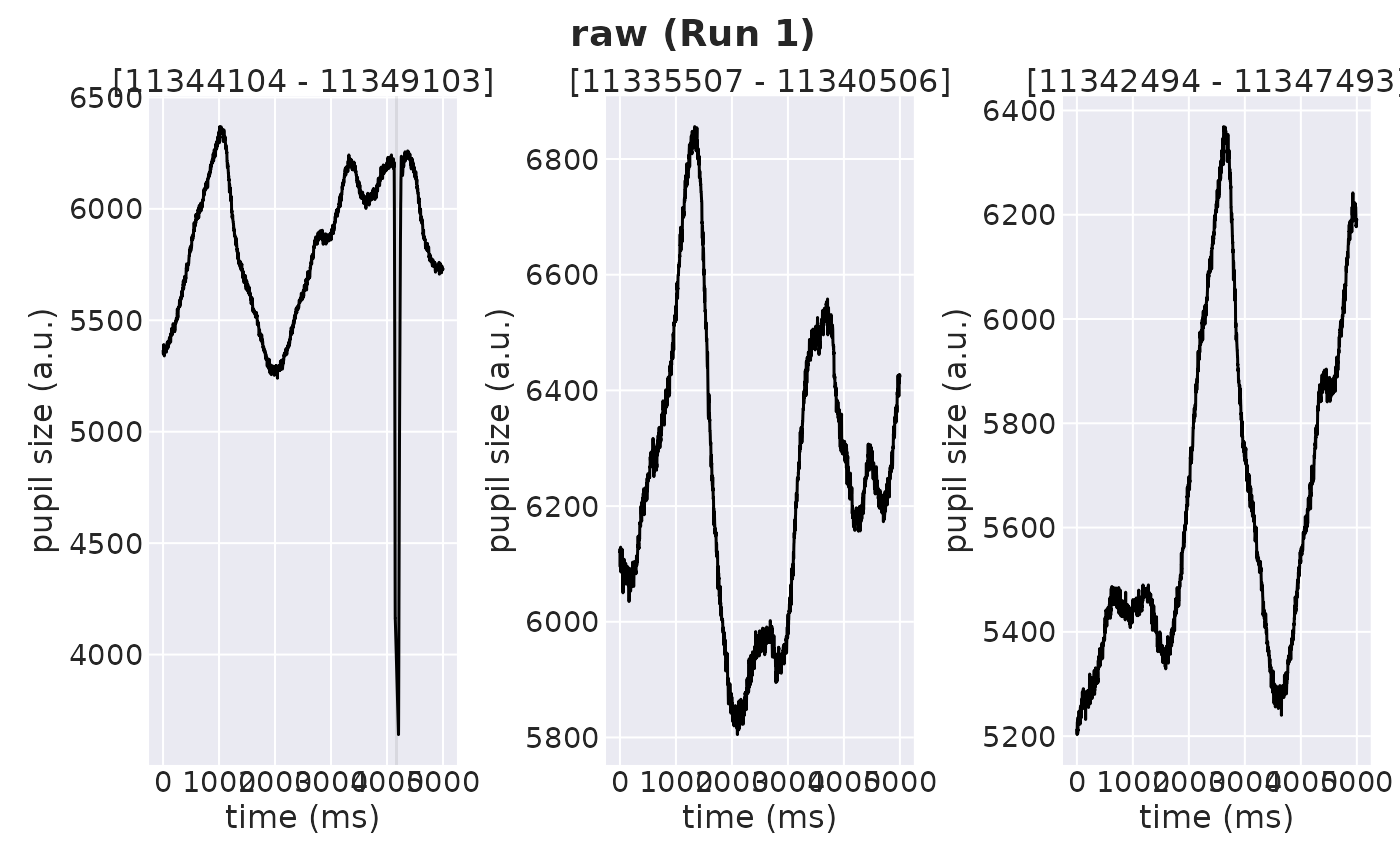

demo_data |>
  # set to FALSE to skip (not recommended)
  eyeris::glassbox(interpolate = TRUE) |>

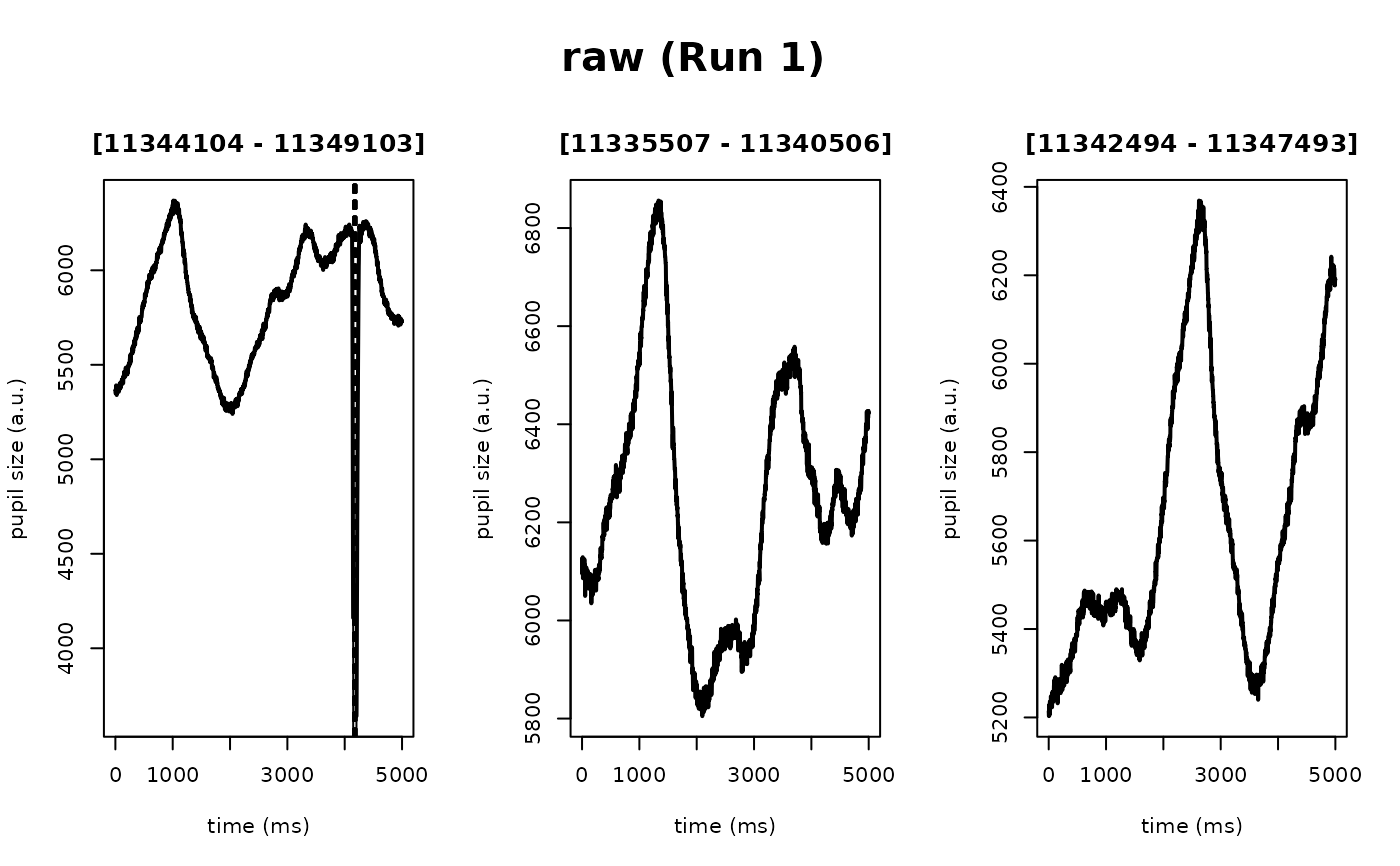

  plot(seed = 0)
#> ✔ [2026-07-19 07:17:42] [OKAY] Running eyeris::load_asc()
#> ✔ [2026-07-19 07:17:42] [OKAY] Running eyeris::resample()
#> ℹ [2026-07-19 07:17:42] [INFO] Processing block: block_1

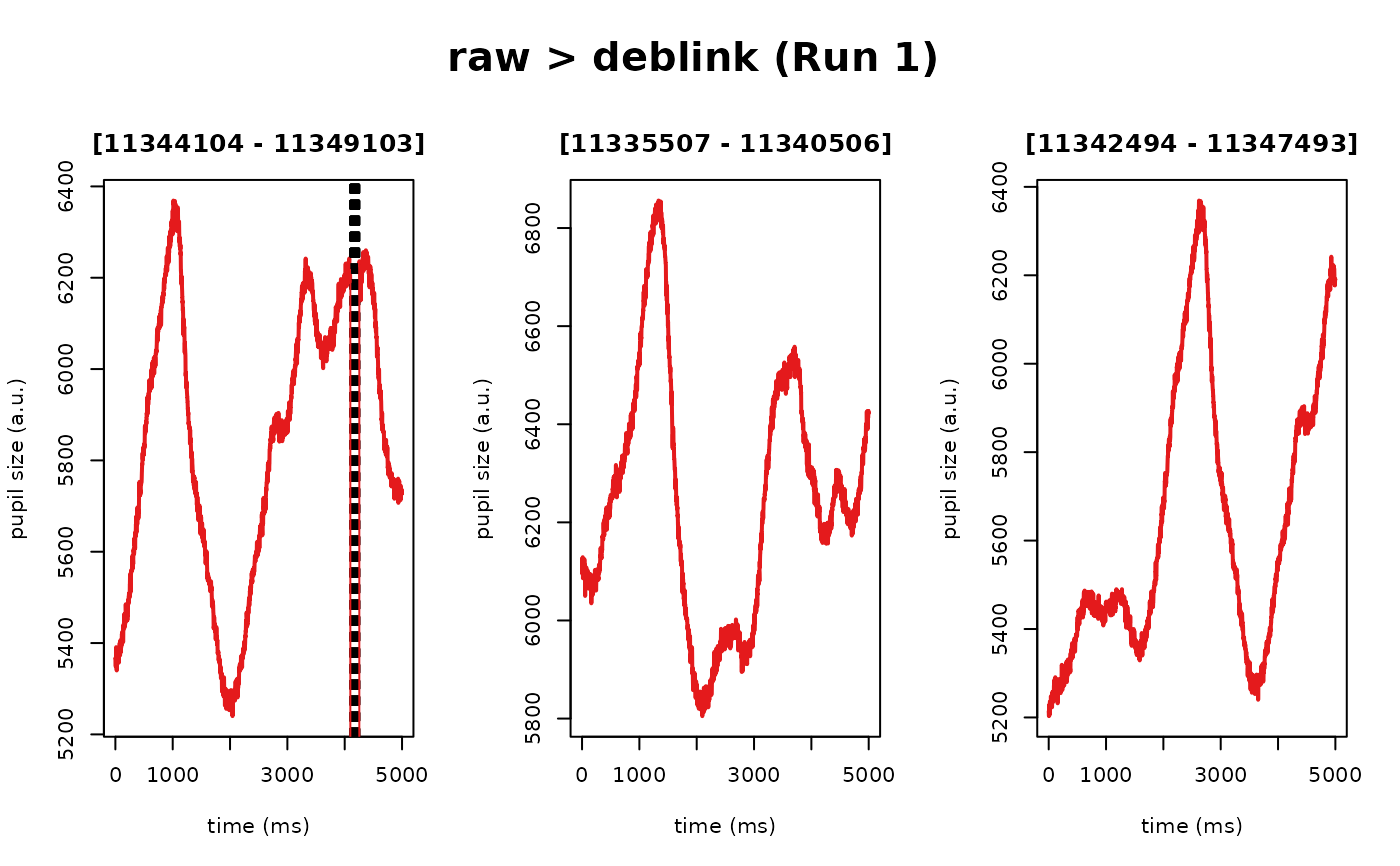

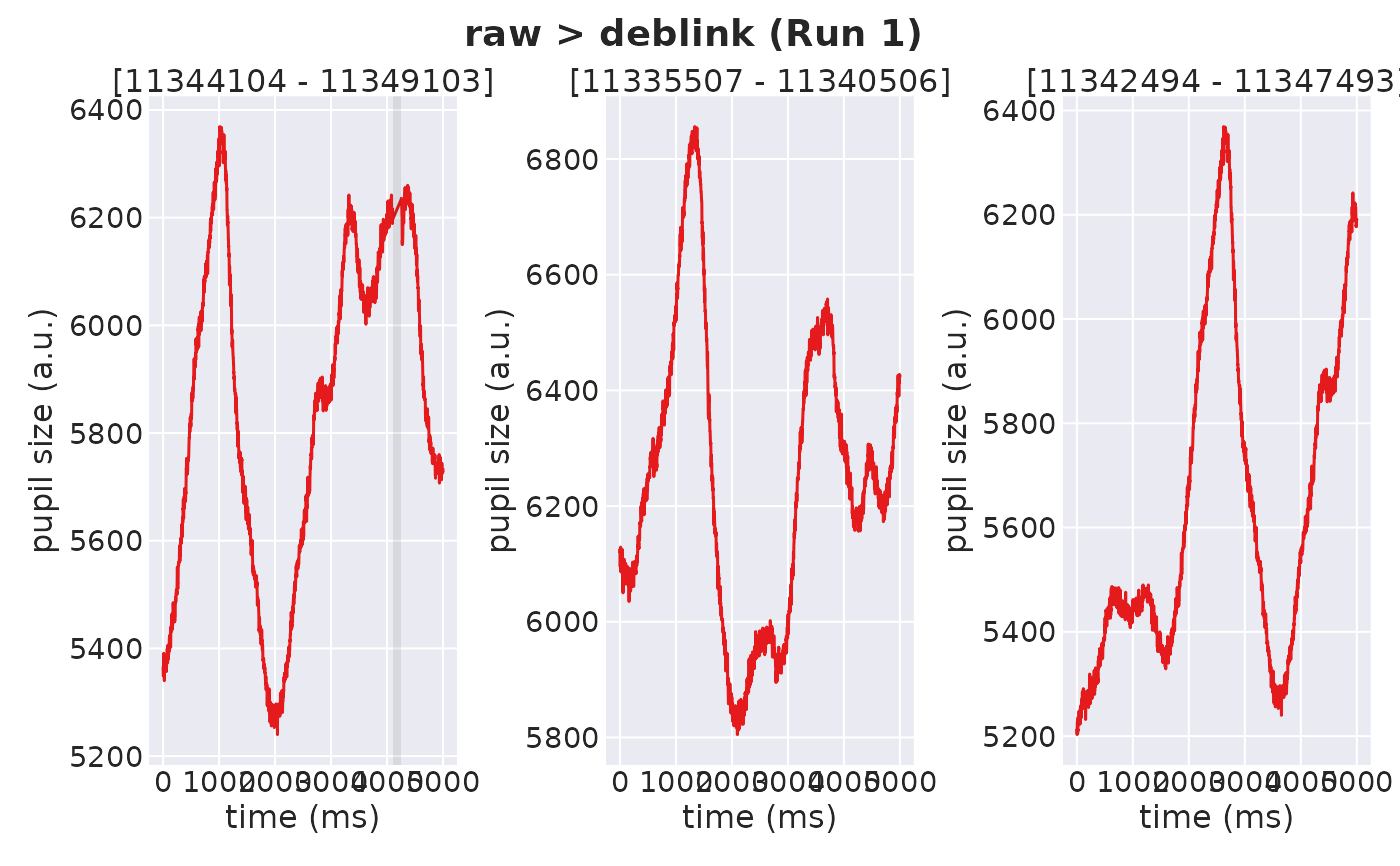

#> ✔ [2026-07-19 07:17:42] [OKAY] Running eyeris::deblink() for block_1

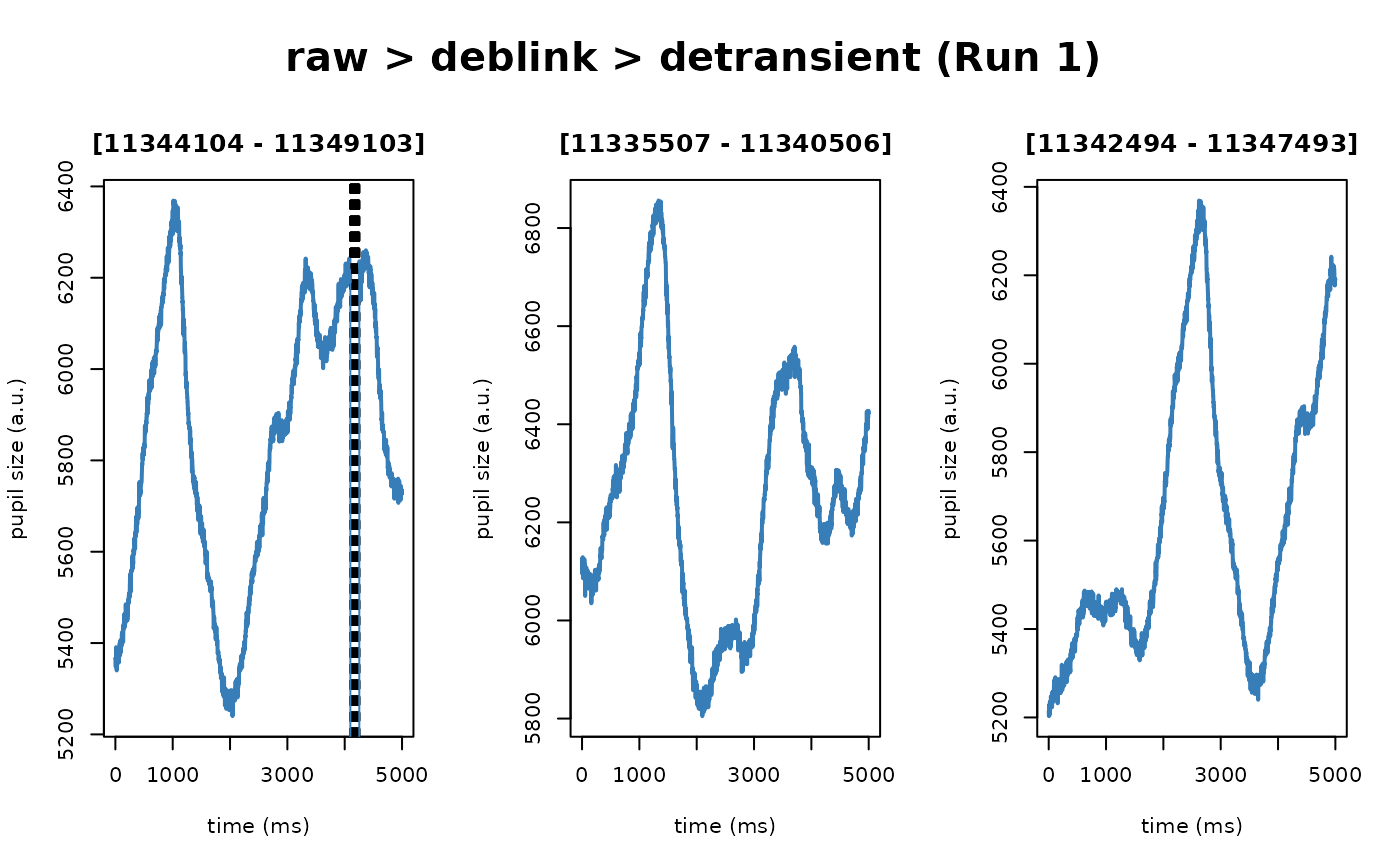

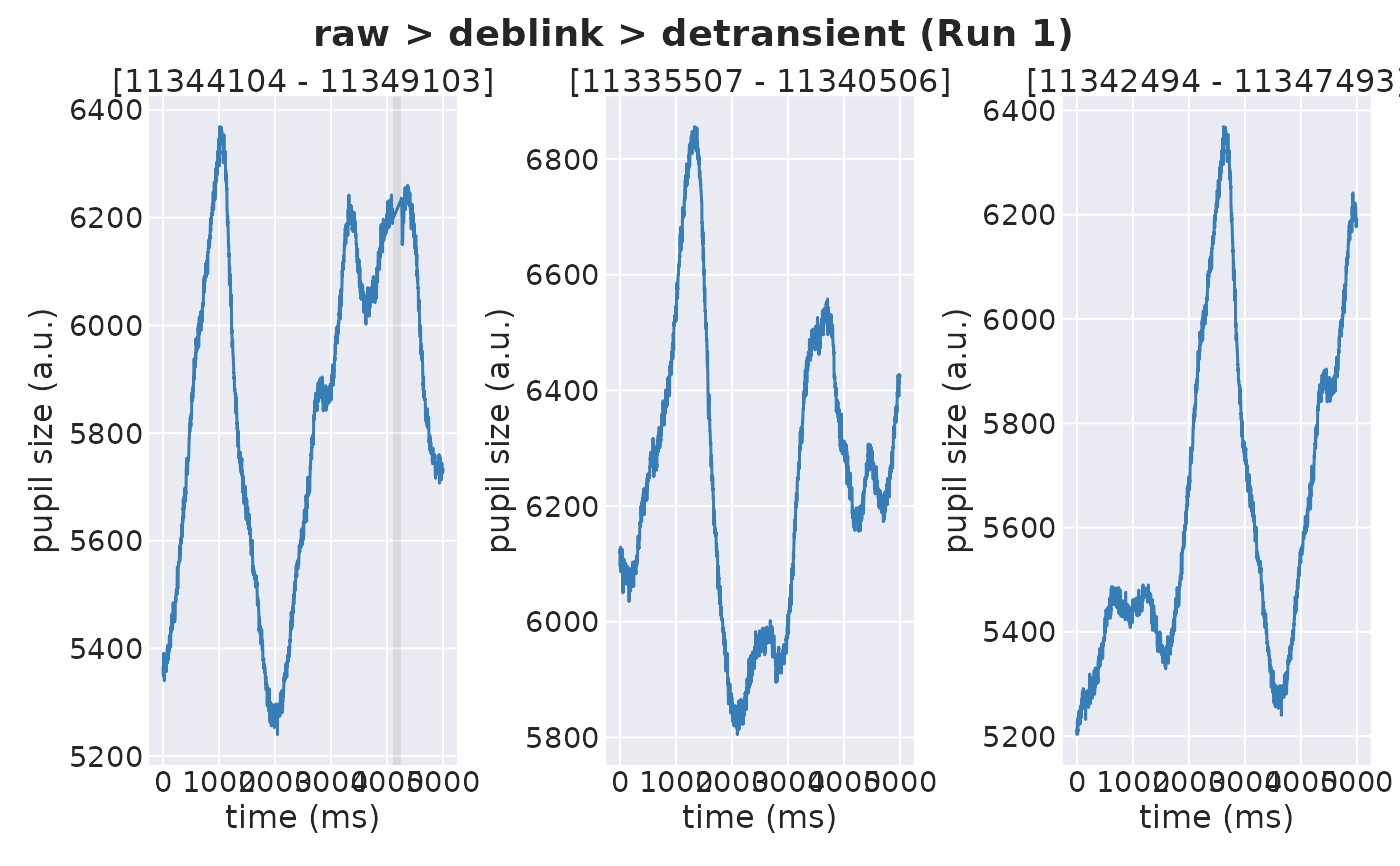

#> ✔ [2026-07-19 07:17:42] [OKAY] Running eyeris::detransient() for block_1

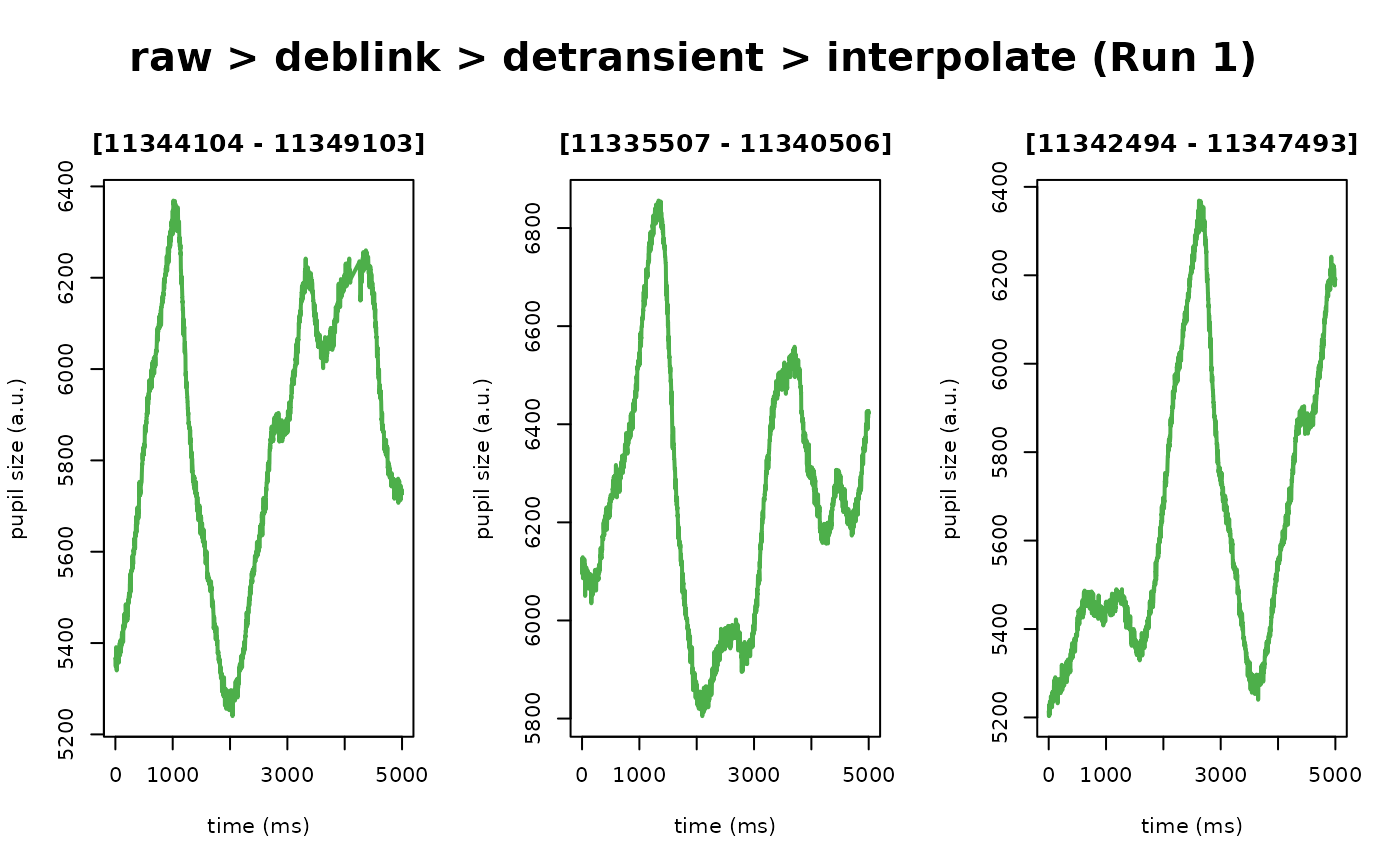

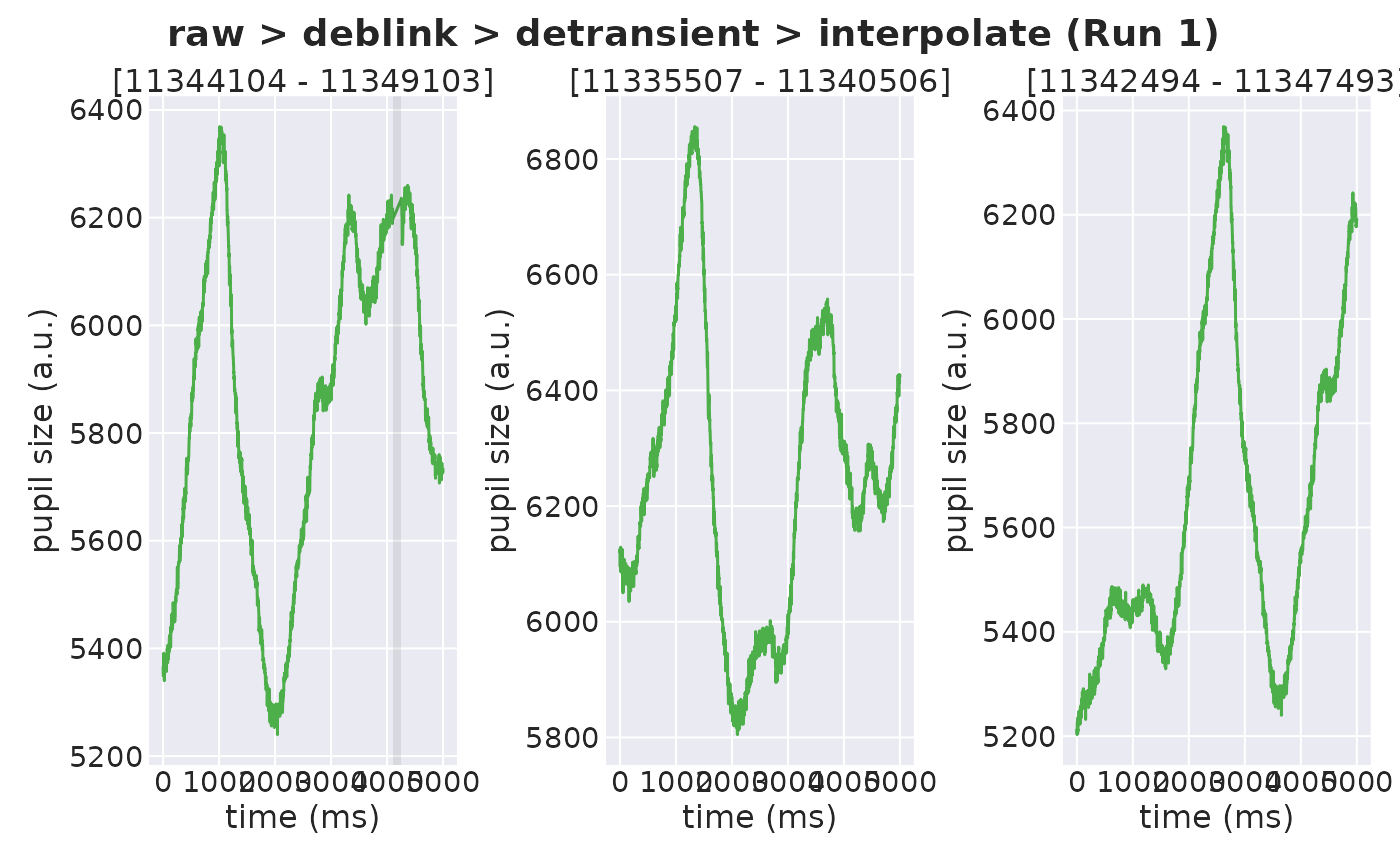

#> ✔ [2026-07-19 07:17:42] [OKAY] Running eyeris::interpolate() for block_1
#> ! [2026-07-19 07:17:42] [WARN] Interpolation now leaves gaps longer than 250 ms
#> as `NA` instead of interpolating across them (following Kret & Sjak-Shie,
#> 2018). This is a change in default behavior from eyeris <= 3.2.0 and may affect
#> your results. To restore the previous behavior, set `interpolate =
#> list(max_gap_ms = Inf)` in `glassbox()` (or `max_gap_ms = Inf` in
#> `interpolate()`).

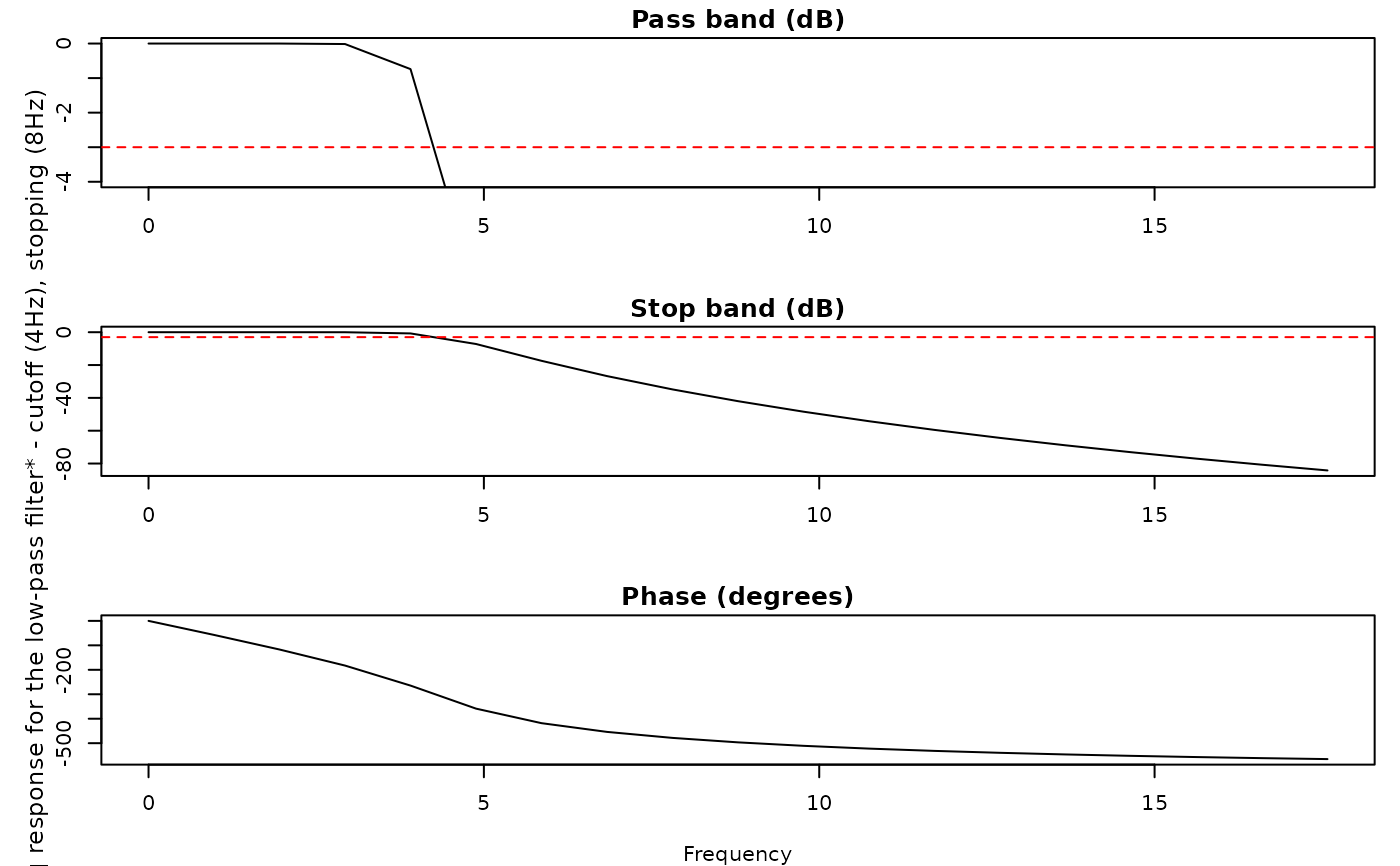

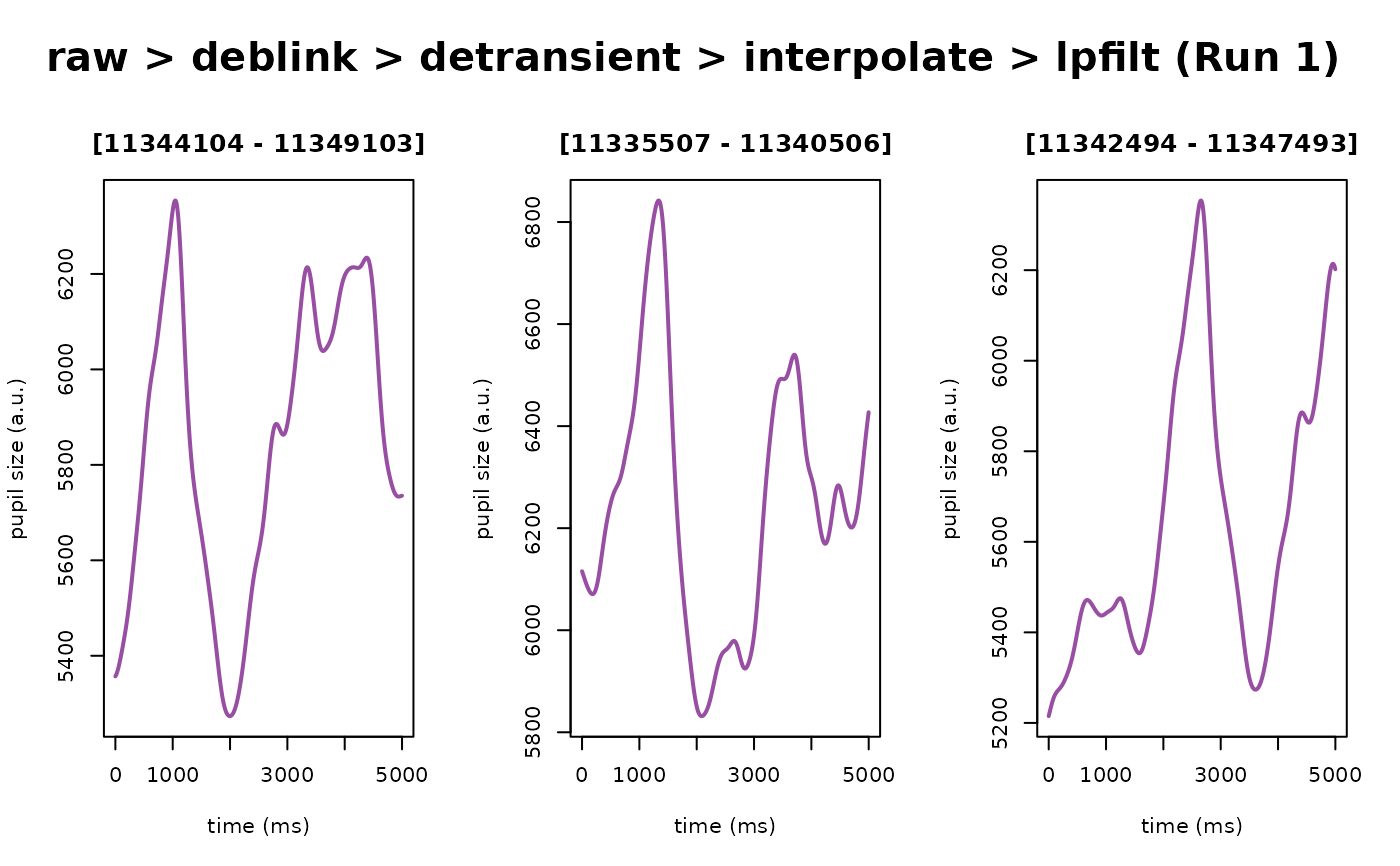

#> ✔ [2026-07-19 07:17:42] [OKAY] Running eyeris::lpfilt() for block_1

#> ! [2026-07-19 07:17:42] [WARN] Skipping eyeris::downsample() for block_1
#> ! [2026-07-19 07:17:42] [WARN] Skipping eyeris::bin() for block_1
#> ! [2026-07-19 07:17:42] [WARN] Skipping eyeris::detrend() for block_1

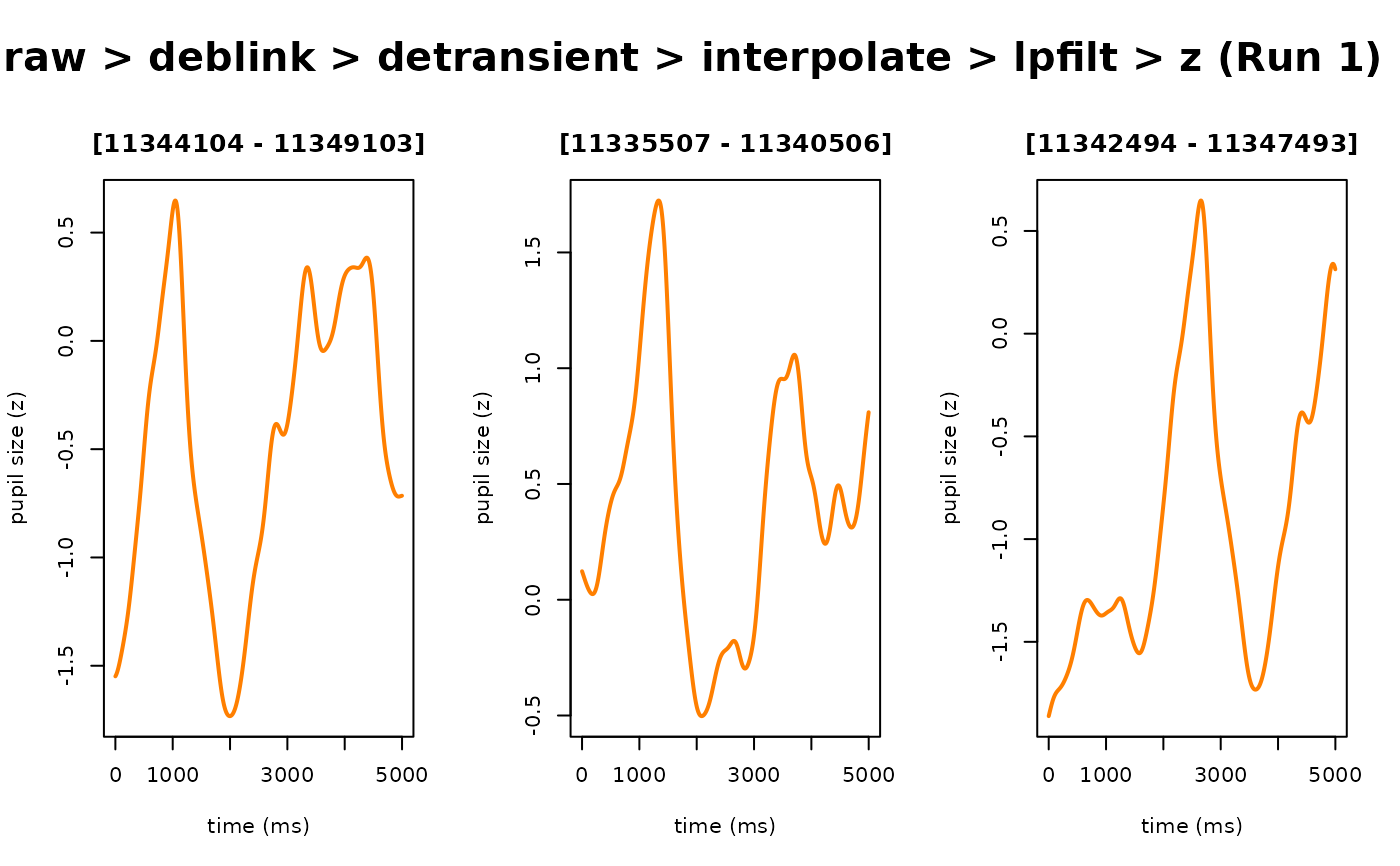

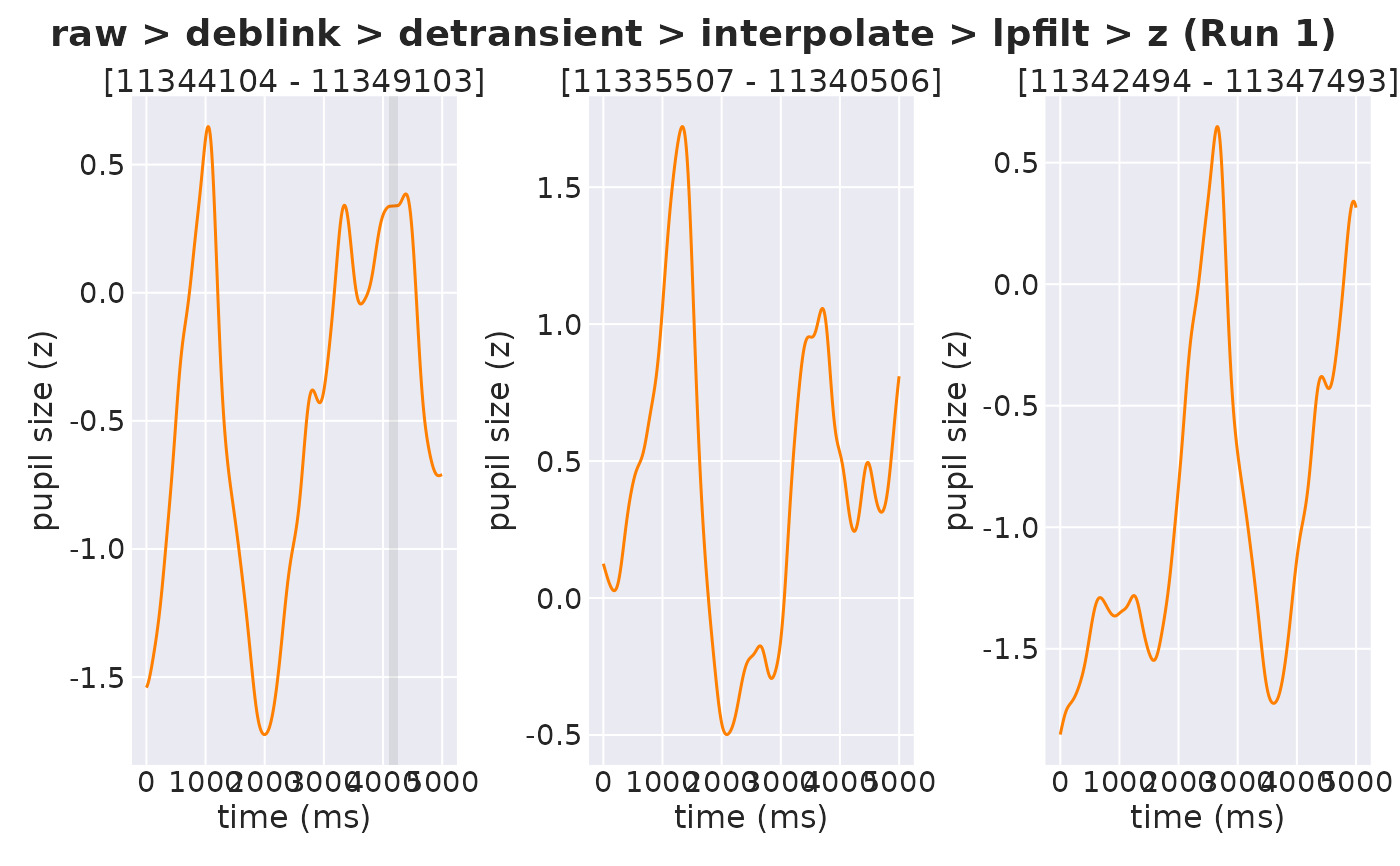

#> ✔ [2026-07-19 07:17:42] [OKAY] Running eyeris::zscore() for block_1
#> ℹ [2026-07-19 07:17:42] [INFO] Block processing summary:
#> ℹ [2026-07-19 07:17:42] [INFO] block_1: OK (steps: 6, latest:
#> pupil_raw_deblink_detransient_interpolate_lpfilt_z)
#> ✔ [2026-07-19 07:17:42] [OKAY] Running eyeris::summarize_confounds()
#> ℹ [2026-07-19 07:17:43] [INFO] Plotting block 1 with sampling rate 1000 Hz from
#> possible blocks: 1







# only interpolate gaps up to 100 ms; leave longer gaps as NA
demo_data |>
  eyeris::glassbox(interpolate = list(max_gap_ms = 100)) |>
  plot(seed = 0)
#> ✔ [2026-07-19 07:17:46] [OKAY] Running eyeris::load_asc()
#> ✔ [2026-07-19 07:17:46] [OKAY] Running eyeris::resample()
#> ℹ [2026-07-19 07:17:46] [INFO] Processing block: block_1
#> ✔ [2026-07-19 07:17:46] [OKAY] Running eyeris::deblink() for block_1
#> ✔ [2026-07-19 07:17:46] [OKAY] Running eyeris::detransient() for block_1
#> ✔ [2026-07-19 07:17:46] [OKAY] Running eyeris::interpolate() for block_1
#> ! [2026-07-19 07:17:46] [WARN] Interpolation now leaves gaps longer than 100 ms
#> as `NA` instead of interpolating across them (following Kret & Sjak-Shie,
#> 2018). This is a change in default behavior from eyeris <= 3.2.0 and may affect
#> your results. To restore the previous behavior, set `interpolate =
#> list(max_gap_ms = Inf)` in `glassbox()` (or `max_gap_ms = Inf` in
#> `interpolate()`).
#> ! [2026-07-19 07:17:46] [WARN] Left 156 sample(s) as NA across gaps longer than
#> 100 ms (not interpolated).

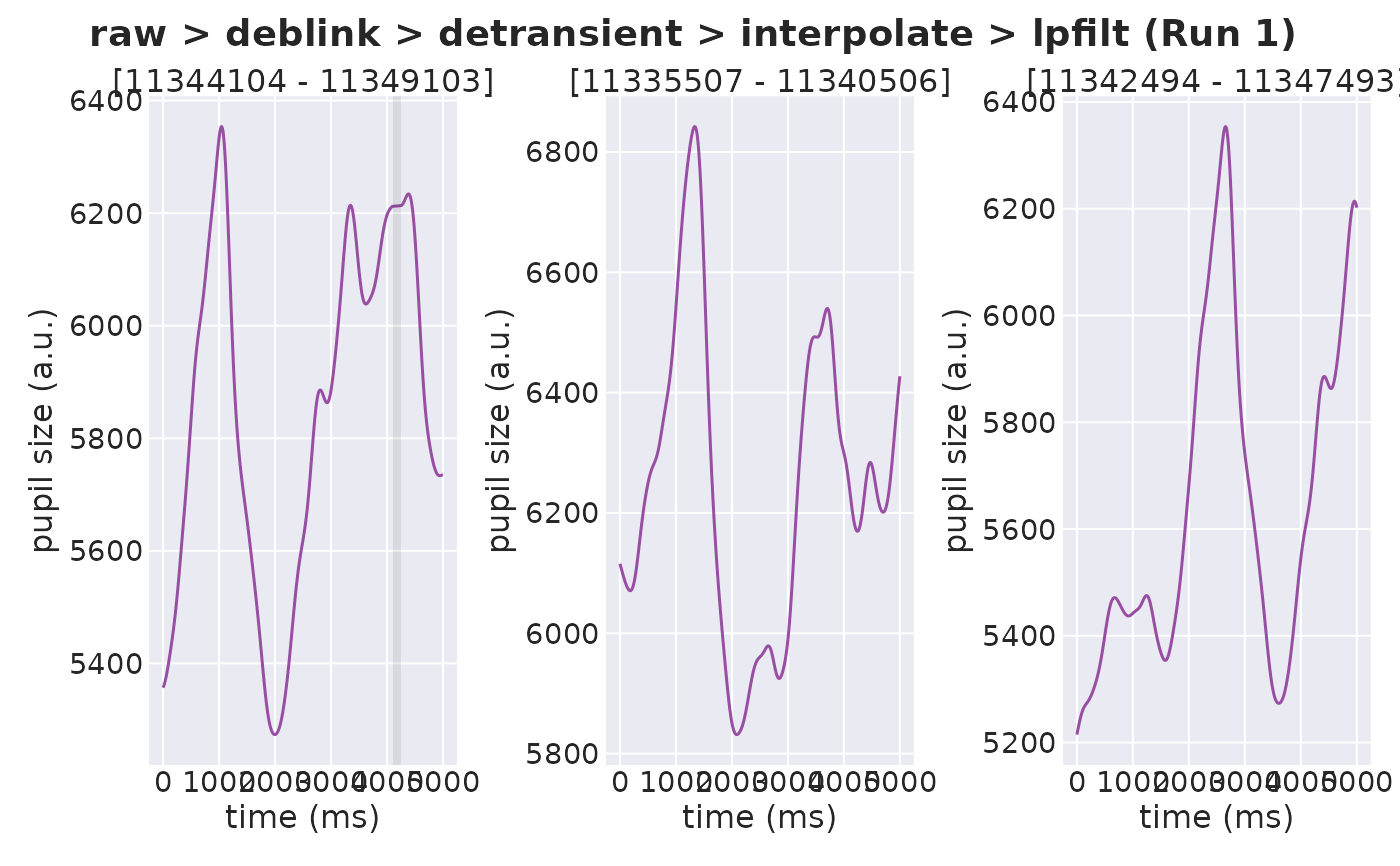

#> ✔ [2026-07-19 07:17:46] [OKAY] Running eyeris::lpfilt() for block_1
#> ! [2026-07-19 07:17:46] [WARN] `lpfilt()` is operating on data that contains
#> gaps longer than the interpolation limit (`max_gap_ms`), which were left as
#> `NA`. These gaps are temporarily filled so the filter can run and then masked
#> back to `NA`; this can slightly bias the valid pupil samples immediately
#> adjacent to each gap toward the interpolated values. If this bias is a concern
#> for your analysis, consider disabling filtering and/or downsampling (e.g.
#> `lpfilt = FALSE` and/or `downsample = FALSE` in `glassbox()`).

#> ! [2026-07-19 07:17:46] [WARN] Skipping eyeris::downsample() for block_1
#> ! [2026-07-19 07:17:46] [WARN] Skipping eyeris::bin() for block_1
#> ! [2026-07-19 07:17:46] [WARN] Skipping eyeris::detrend() for block_1
#> ✔ [2026-07-19 07:17:46] [OKAY] Running eyeris::zscore() for block_1
#> ℹ [2026-07-19 07:17:46] [INFO] Block processing summary:
#> ℹ [2026-07-19 07:17:46] [INFO] block_1: OK (steps: 6, latest:
#> pupil_raw_deblink_detransient_interpolate_lpfilt_z)
#> ✔ [2026-07-19 07:17:46] [OKAY] Running eyeris::summarize_confounds()
#> ℹ [2026-07-19 07:17:46] [INFO] Plotting block 1 with sampling rate 1000 Hz from
#> possible blocks: 1
