Build a generic operation (extension) for the eyeris pipeline

pipeline_handler enables flexible integration of custom data processing functions into the eyeris pipeline. Under the hood, each preprocessing function in eyeris is a wrapper around a core operation that gets tracked, versioned, and stored using this pipeline_handler method. As such, custom pipeline steps must conform to the eyeris protocol for maximum compatibility with the downstream functions we provide.

Usage

pipeline_handler(eyeris, operation, new_suffix, ...)

Arguments

eyeris

An object of class eyeris containing time series data in a list of data frames (one per block), various metadata collected by the tracker, and eyeris specific pointers for tracking the preprocessing history for that specific instance of the eyeris object

operation

The name of the function to apply to the time series data. This custom function should accept a data frame x, a string prev_op (i.e., the name of the previous pupil column – which you DO NOT need to supply as a literal string as this is inferred from the latest pointer within the eyeris object), and any custom parameters you would like

new_suffix

A character string indicating the suffix you would like to be appended to the name of the previous operation's column, which will be used for the new column name in the updated preprocessed data frame(s)

...

Additional (optional) arguments passed to the operation method

Value

An updated eyeris object with the new column added to the timeseries data frame and the latest pointer updated to the name of the most recently added column plus all previous columns (ie, the history "trace" of preprocessing steps from start-to-present)

Details

Following the eyeris protocol also ensures:

• all operations follow a predictable structure, and

• that new pupil data columns based on previous operations in the chain are able to be dynamically constructed within the core time series data frame.

See also

For more details, please check out the following vignettes:

• Anatomy of an eyeris Object

vignette("anatomy", package = "eyeris")

• Building Your Own Custom Pipeline Extensions

vignette("custom-extensions", package = "eyeris")

Examples

# first, define your custom data preprocessing function
winsorize_pupil <- function(x, prev_op, lower = 0.01, upper = 0.99) {
  vec <- x[[prev_op]]
  q <- quantile(vec, probs = c(lower, upper), na.rm = TRUE)
  vec[vec < q[1]] <- q[1]
  vec[vec > q[2]] <- q[2]
  vec
}

# second, construct your `pipeline_handler` method wrapper
winsorize <- function(eyeris, lower = 0.01, upper = 0.99, call_info = NULL) {
  # create call_info if not provided
  call_info <- if (is.null(call_info)) {
    list(
      call_stack = match.call(),
      parameters = list(lower = lower, upper = upper)
    )
  } else {
    call_info
  }

  # handle binocular objects
  if (eyeris:::is_binocular_object(eyeris)) {
    # process left and right eyes independently
    left_result <- eyeris$left |>
      pipeline_handler(
        winsorize_pupil,
        "winsorize",
        lower = lower,
        upper = upper,
        call_info = call_info
      )

    right_result <- eyeris$right |>
      pipeline_handler(
        winsorize_pupil,
        "winsorize",
        lower = lower,
        upper = upper,
        call_info = call_info
    )

    # return combined structure
    list_out <- list(
      left = left_result,
      right = right_result,
      original_file = eyeris$original_file,
      raw_binocular_object = eyeris$raw_binocular_object
    )

    class(list_out) <- "eyeris"

    return(list_out)
  } else {
    # regular eyeris object, process normally
    eyeris |>
      pipeline_handler(
        winsorize_pupil,
        "winsorize",
        lower = lower,
        upper = upper,
        call_info = call_info
      )
  }
}

# and voilà, you can now connect your custom extension
# directly into your custom `eyeris` pipeline definition!
custom_eye <- system.file("extdata", "memory.asc", package = "eyeris") |>
  eyeris::load_asc(block = "auto") |>
  eyeris::deblink(extend = 50) |>
  winsorize()

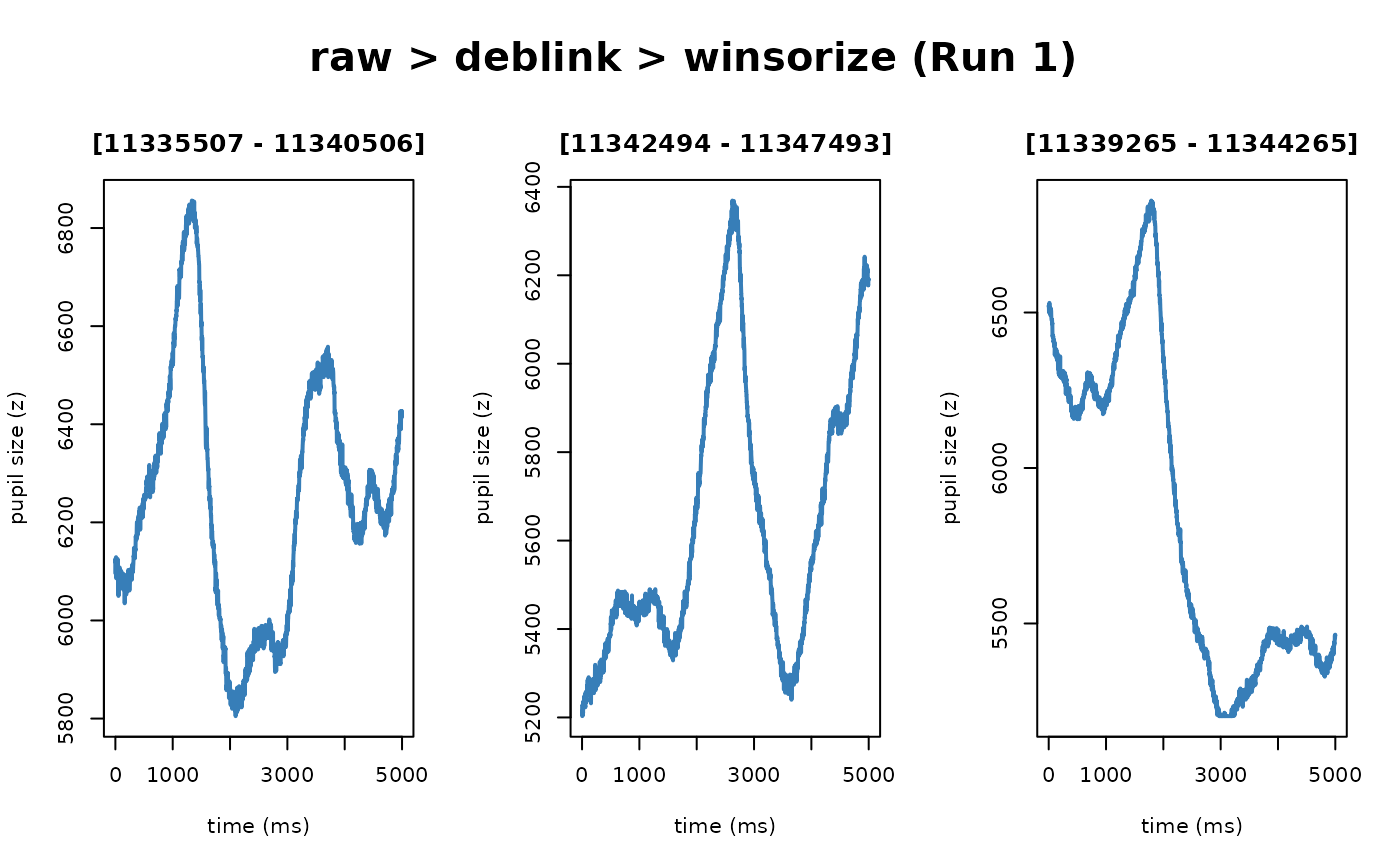

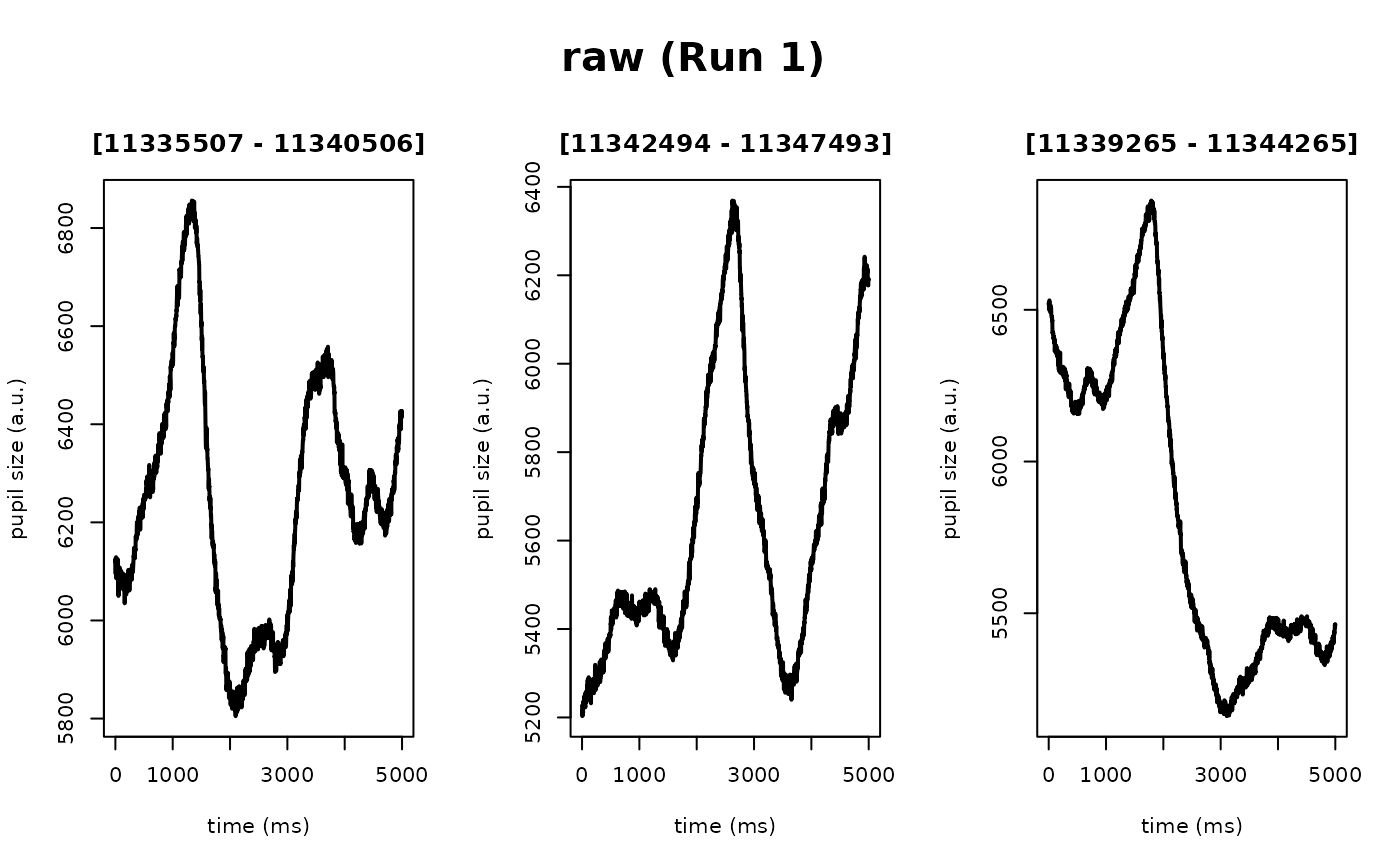

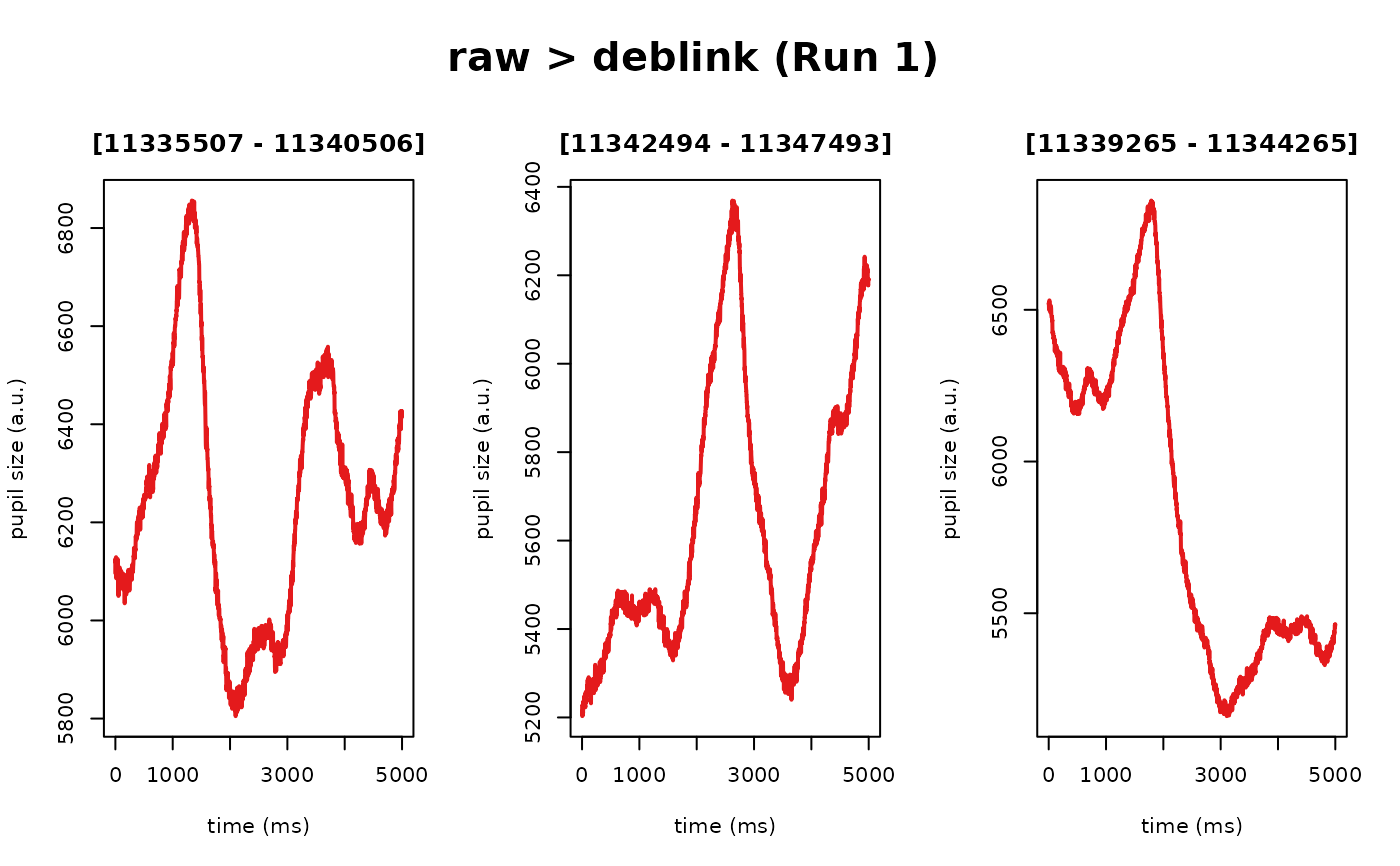

plot(custom_eye, seed = 1)
#> ℹ [2025-12-05 19:59:47] [INFO] Plotting block 1 with sampling rate 1000 Hz from
#> possible blocks: 1
